Specifiche chiave/Caratteristiche speciali:
materiale: acciaio al carbonio
imballaggio: tubo di plastica o come richiesto
colore: blu, giallo o rosso

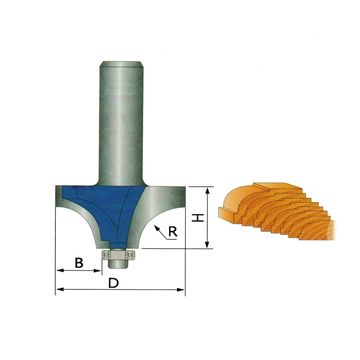

| Dimensioni (mm) | D(mm) | R(mm) | B(mm) | Hmm) |
| 1/4*1/8 | 15.9 | 1.58 | 3.45 | 12.7 |
| 1/4*3/16 | 17.46 | 2.38 | 4.23 | 12.7 |
| 1/4*1/4 | 19.05 | 3.17 | 5.02 | 12.7 |
| 1/4*5/16 | 20.62 | 3.96 | 5.81 | 12.7 |
| 1/4*3/8 | 22.22 | 4.76 | 6.61 | 12.7 |
| 1/4*1/2 | 25.4 | 6.35 | 8.2 | 12.7 |
| 1/4*5/8 | 28.6 | 7.96 | 9.8 | 12.7 |
| 1/4*3/4 | 31.7 | 9.52 | 11.35 | 15.9 |
| 1/4*7/8 | 34.9 | 11.1 | 12.9 | 17 |
| 1/4*1 | 38.1 | 12.7 | 14.5 | 19.05 |
| 1/2*1/4 | 19.05 | 3.17 | 5.02 | 12.7 |
| 1/2*5/16 | 20.62 | 3.96 | 5.81 | 12.7 |
| 1/2*3/8 | 22.22 | 4.76 | 6.61 | 12.7 |
| 1/2-1/2 | 25.4 | 6.35 | 8.2 | 12.7 |
| 1/2*5/8 | 28.6 | 7.96 | 9.8 | 12.7 |
| 1/2*3/4 | 31.7 | 9.52 | 11.35 | 15.9 |
| 1/2*7/8 | 34.9 | 11.1 | 12.9 | 17 |
| 1/2*1 | 38.1 | 12.7 | 14.5 | 19.05 |
| 1/2*1-1/8 | 41.3 | 14.3 | 16.15 | 19.3 |
| 1/2*1-1/4 | 44.45 | 15.9 | 17.72 | 22.2 |
| 1/2*1-3/8 | 47.6 | 17.45 | 19.3 | 23.85 |
| 1/2*1-1/2 | 50.8 | 19.05 | 20.9 | 25.4 |
| 1/2*1-5/8 | 53.96 | 20.63 | 22.48 | 27.13 |
| 1/2*1-3/4 | 57.15 | 22.2 | 24.07 | 28.5 |
| 1/2*1-7/8 | 60.32 | 23.81 | 25.66 | 30.31 |
| 1/2*2 | 63.5 | 25.4 | 27.25 | 32 |
| 1/2*2-1/8 | 66.66 | 26.98 | 28.83 | 33.48 |
| 1/2*2-1/4 | 69.84 | 28.57 | 30.42 | 35.07 |
| 1/2*2-3/8 | 73.02 | 30.16 | 32.01 | 36.66 |
| 1/2*2-1/2 | 76.2 | 31.75 | 33.6 | 38.25 |
| 1/2*2-5/8 | 79.37 | 33.33 | 35.18 | 39.83 |
| 1/2*2-3/4 | 82.55 | 34.92 | 36.77 | 41.42 |
| 1/2-*2-7/8 | 85.72 | 36.51 | 38.36 | 43.01 |
| 1/2*3 | 88.9 | 38.1 | 39.95 | 45.1 |
